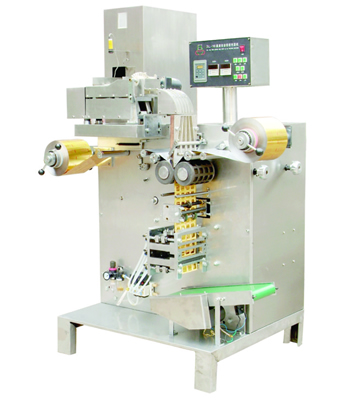

Dll-160型高速自動鋁鋁包裝機
發布日期：2018-06-13 15:16:54 點擊：10816
高速自動鋁鋁包裝機是我廠科技人員在引進國外先進設備的基礎上
，采用國際上先進技術吸收而消化改進的藥品包裝機
。具有設計新穎、結構合理、調節靈活、操作維護方便等優點
。
該機配備振動式整列加料機構
，變頻調速
、行程可自由設定
、充填
、熱封、撕線
、打批號
<cite id="2yysq"></cite>
<fieldset id="2yysq"><menu id="2yysq"></menu></fieldset>
、裁切等工序自動完成、可達高速運行
，同步準確無誤
，各項技術指標符合“GMP”規范要求。
適用于制藥行業各種片劑
，膠囊及各種異形固體物品的避光防潮包裝
。
主要技術參數:
生產效率 10000-30000粒/小時
電機功率 0.55kw
壓縮空氣 0.4Mpa
包裝寬度 最大寬度160mm
整機重量 420kg
外形尺寸 長×寬×高（L×W×）1200×850×1700mm
DLL-160 High Speed Automatic Aluminum Packing Machine
The machine is invented by our technical staff adopting and absorbing the international advanced technology on the base of introduced international advanced equipment. The machine is flexible to operate and convenient to maintain with original design and reasonable structure.
The machine is equipped with vibratory alignment feeder. The frequency control and range can be set by itself freely; filling, heat sealing, ripping, laying batch number and cutting processes can be done automatically. Operating the machine can be at high speed, synchronous accuracy. The technical specifications of the machine are all in accordance with GMP code requirements.
The machine applies to packing all kinds of tablets, capsules and abnormal solid products of the pharmacy line, which need the packing is damp-proof and sun-avoid.
Specifications:
Production efficiency: 10000-30000 granules/hour
Motor power: 0.55kw
Compressed air: 0.4Mpa
Packing width: max 160mm
Total weight: 420kg
Dimension (Length × Width × Height): 1200×850×1700m
